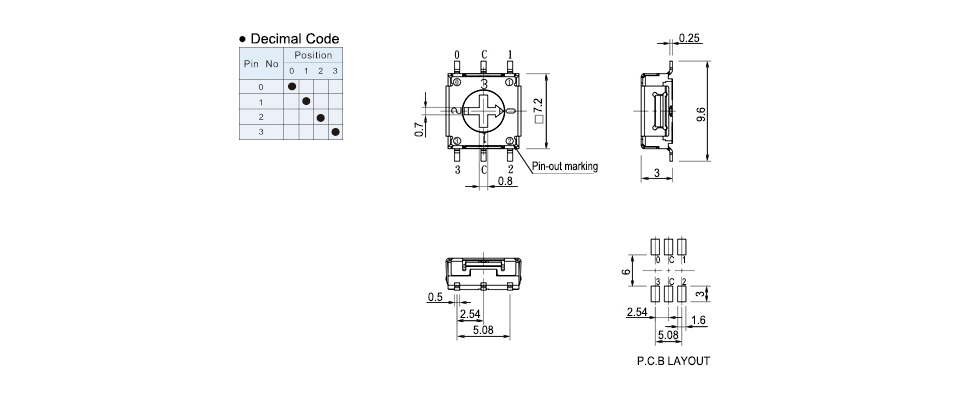

Rotary DIP switch 4pos, 7.2x7.2mm 5V 100mA, RoHS Directive-compliant

B174000

Features:
- Molded-in terminals and fully sealed construction.
- All plastics UL 94V-0 grade fire retardant.
- Reliable contact and long-term stability.
- Binary decimal (8 or 10 positions) and hexadecimal (16 positions), real and complementary codes available.
- Pin-out is compatible with most of current equivalents.
- Gold plated contact to ensure low contact resistance.
Application:
- Address switching applications
- Data storage devices
- Computer and peripherals
- Instrumentation
Rotary DIP switch 4pos, 7.2x7.2mm, RoHS Directive-compliant
Contact rating:
- Switching: 24VDC 25mA
- Non-switching: 100mA
Insulation resistance: 1000MΩ minimum at 100VDC
Contact resistance: 100mΩ maximum
Withstand voltage: 250VAC minimum for 1 minute
Other rotary switch items are available, please refer to our web-site and the attached catalogue.

※More detailed specification, competitive prices and flexible quantities, please check and buy on our web-site www.shallin.com.tw!
