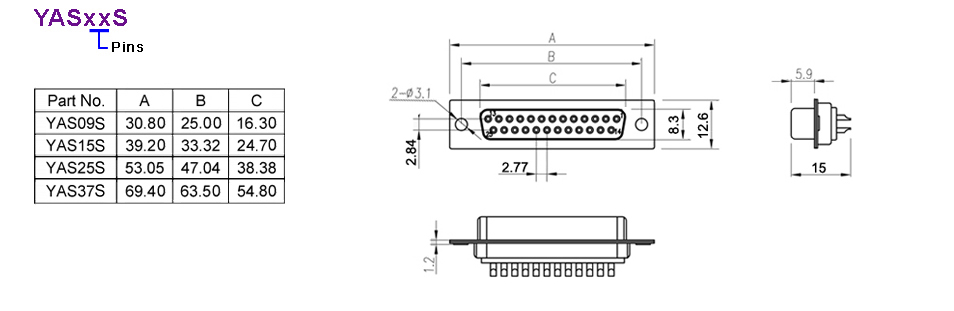

D-sub connector, solder normal type 9-socket, blue insulation, RoHS Directive-compliant

Model No.
YAS09S
Made in
Taiwan
Request for Quotation


Network with over 300 Taiwan quality suppliers! More than 20,000 items to choose from!

Key Features

  • D-sub connector, solder normal type 9-socket
  • Blue insulation
  • RoHS Directive-compliant
  • Specifications:
    • Current rating: 1A Max.
    • Contact resistance: 30mΩ Max.
    • Insulation resistance: 1000MΩ Min. at 500VDC
    • Dielectric withstanding voltage: 500VAC for 1 minute
    • Total unmating force: 5.0Kgf Max.
    • Total unmating force: 2.5Kgf Min.
    • Temperature range: -55 to +105°C
  • Materials:
    • Insulator: P.B.T UL94-V0 rated
    • Contact: Brass, t=0.2mm
    • Shell: Cold rolled steel, t=0.4mm
  • Finishes:
    • Contacts: Gold flashed
    • Shell: Nickel, tin plated
  • Other D-sub connectors are available, please refer to the attached catalogues

※More detailed specification, competitive prices and flexible quantities, please check and buy on our web-site www.shallin.com.tw!

Product Certification

Payment Details

  • Payment Terms:TT ,PayPal
  • Minimum Order:100 Piece(s)
