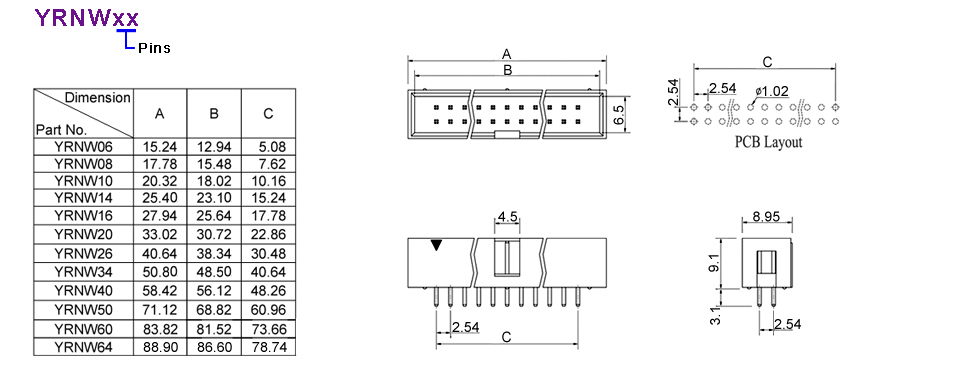

2.54mm Straight box header 10P, without latch lever, RoHS Directive-compliant

Model No.
YRNW10
Made in
Taiwan
Request for Quotation


Network with over 300 Taiwan quality suppliers! More than 20,000 items to choose from!

Spec

  • Cable Type:Others

Key Features

  • 2.54mm Straight box header 10P
  • Without latch lever
  • RoHS Directive-compliant
  • Specifications:
    • Current rating: 3A Max.
    • Insulation resistance: 1000MΩ Min. at 1000VDC
    • Dielectric withstanding voltage: 1000VAC for 1 minute
    • Temperature rating: -55°C to +105°C
  • Materials:
    • Housing: Thermoplastic UL94V-0, black
    • Terminal: Sq. 0.64mm copper alloy, gold plating
  • Other header connectors are available, please refer to attached catalogues

※More detailed specification, competitive prices and flexible quantities, please check and buy on our web-site www.shallin.com.tw!

Product Certification

Payment Details

  • Payment Terms:TT ,PayPal
  • Minimum Order:260 Piece(s)
