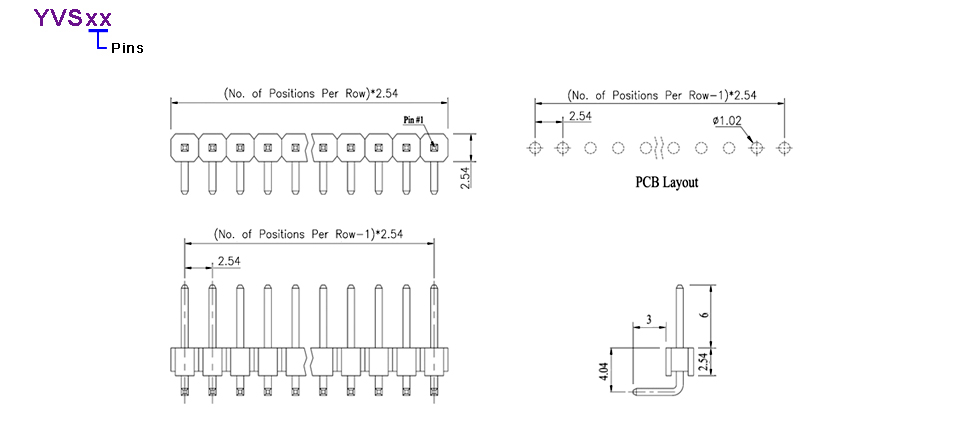

2.54mm Pin header 40P, right angle single row, RoHS Directive-compliant

Model No.
YVS40
Made in
Taiwan
Request for Quotation


Network with over 300 Taiwan quality suppliers! More than 20,000 items to choose from!

Spec

  • Cable Type:Others

Key Features

  • Specifications
    • Current rating: 3A Max.
    • Insulation resistance: 1000MΩ Min. at 1000VDC
    • Dielectric withstanding voltage: 1000VAC for a minute
    • Operating temperature: -55°C to +105°C
    • Other female headers are available, please see attached catalogues
  • Materials
    • Housing: Thermoplastic UL94V-0, black
    • Terminal: Sq. 0.64mm cooper alloy, gold plating
※ More detailed specification, competitive prices and flexible quantities, please check and buy on our web-site www.shallin.com.tw!

Product Certification

Payment Details

  • Payment Terms:TT ,PayPal
  • Minimum Order:250 Piece(s)
